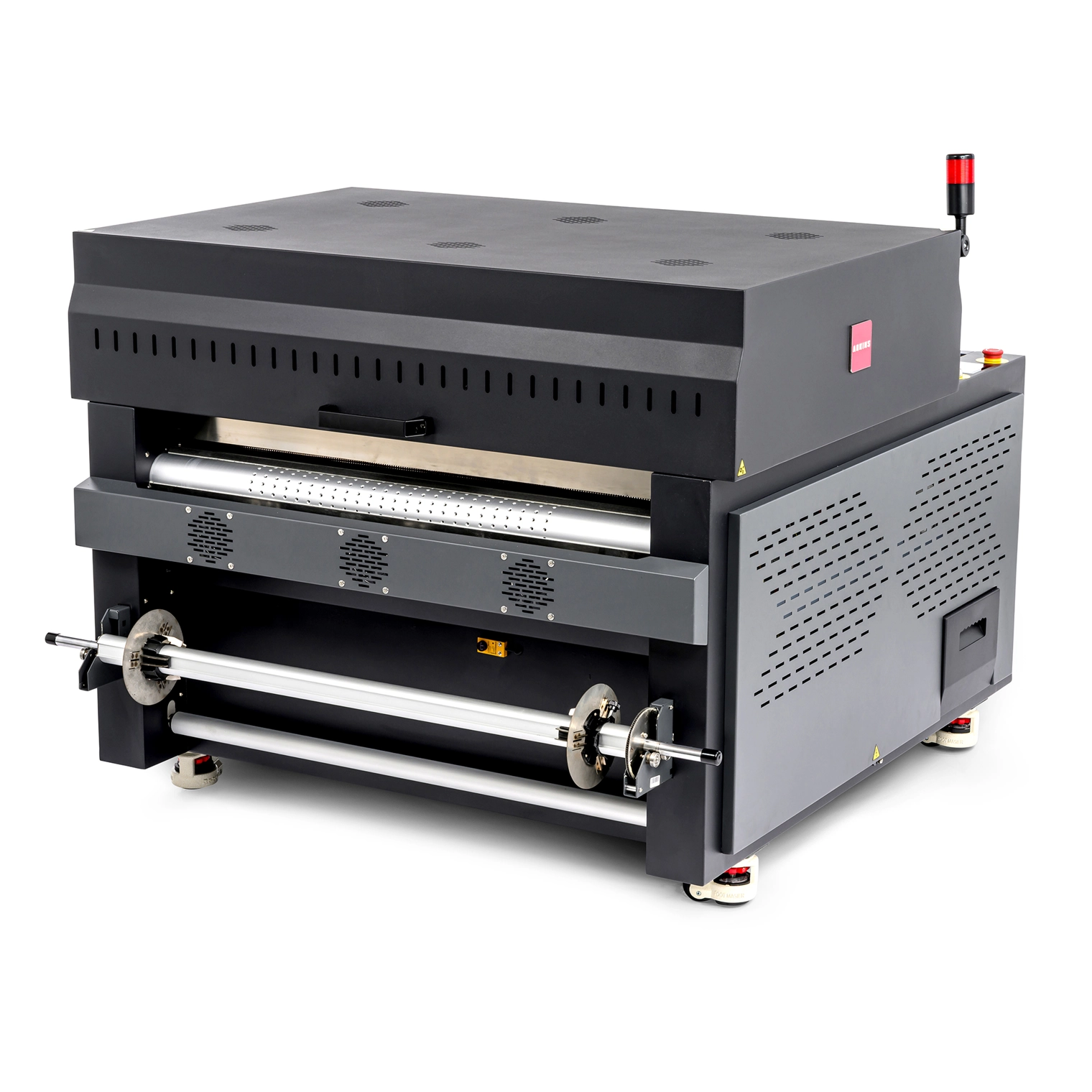

Adkins DTF Inline Compact 900

Designed to achieve demanding volume without compromising output quality or reliability. Featuring automatic operating mode, fast curing times and low power consumption for reduced energy costs. The Compact 900 delivers all expected DTF shaker curer features and much more in a space saving design to provide a versatile yet extremely efficient and reliable solution for your DTF production and workflow.

Key Features:

• 90cm max media width.

• Energy efficient 1.9kw power consumption.(13 amp 3 pin).

• Built-in filtration and extraction for safer operation.

• Powered by standard domestic plug.

Sku: XP1358

In Stock

01332 855 085

Versatile space saving curing solution for efficient roll to roll DTF production


Features:

  • • Compatible with industry leading printer brands.
  • • Reliably powder, cure & filter at speeds of 20 l/m per hour.
  • • Replaceable medical grade filters with automatic on-screen replacement reminders for easy maintenance.
  • • Thoughtful humidity and temperature sensor to help manage your DTF production environment.
  • • Low powder warning light for uninterrupted workflow.

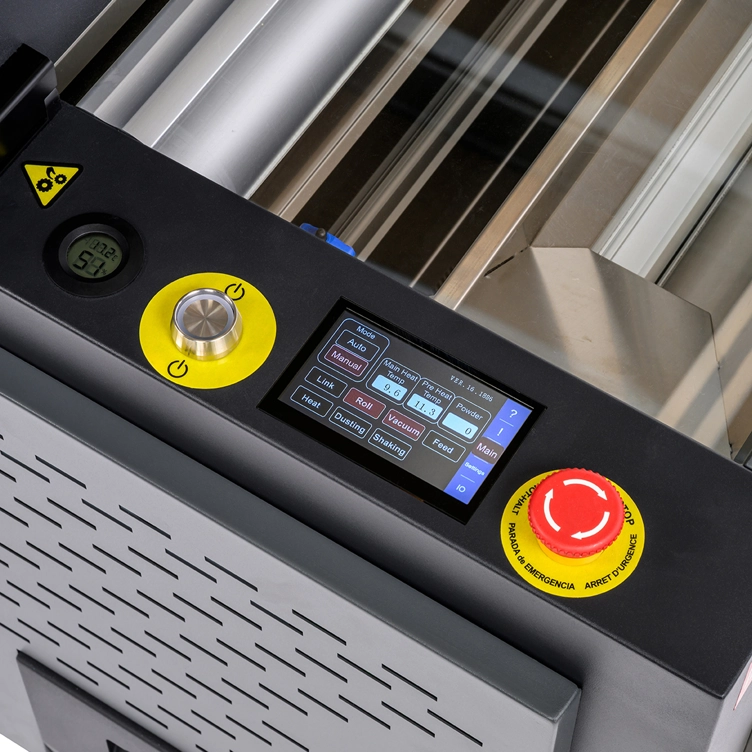

  • • Digital touch screen with feature explanations for intuitive control.
  • • Machine tracking interfaces for simple diagnostics.
  • • Heavy duty build and reliability synonymous with Adkins.



Compatible with all premium brand DTF printers

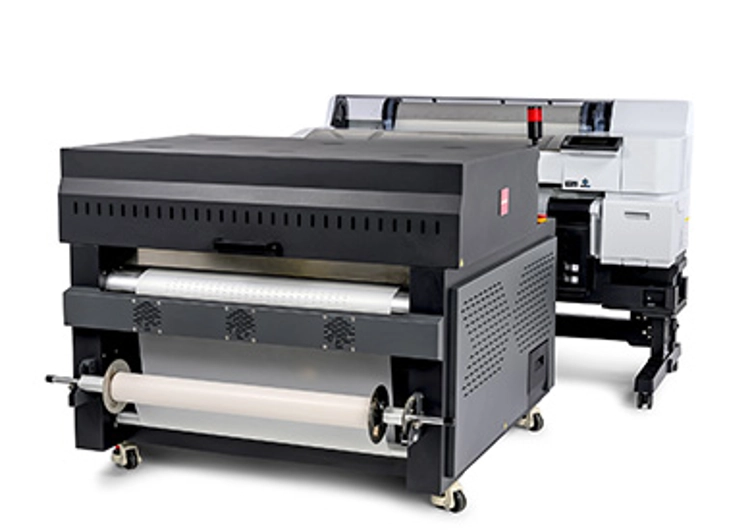

Compact 900 - Epson1

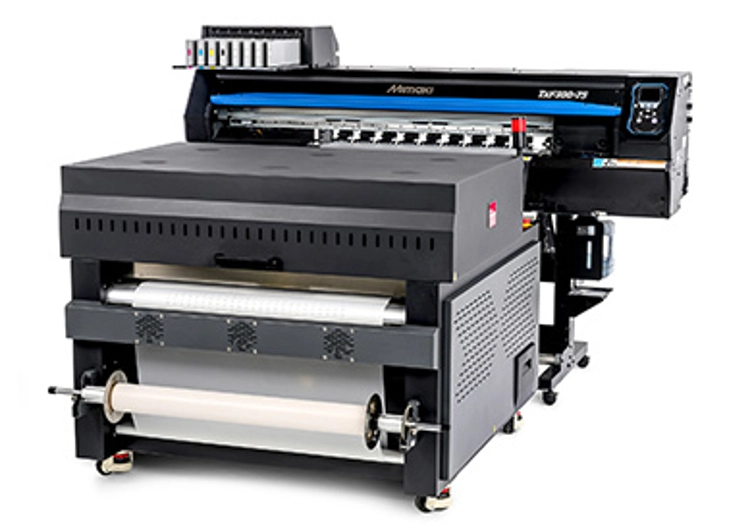

Compact 900 - Mimaki1

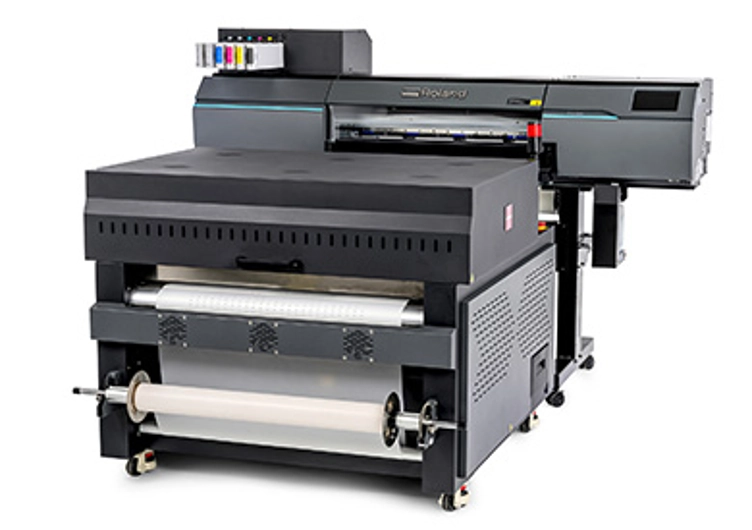

Compact 900 - Roland2

Compact 900 Img1
Compact 900 Img2
Compact 900 Img3
Compact 900 Img4
Operation Voltage
220-240V AC (UK-13A / EU-16A)
Power Consumption
2.1kw (average)
Circuit Breaker
15A
Max Media Width
90cm maximum
Dimensions
131(w) x 114(h) x 145(d) cm
Weight
(net) 228KG
Package Size
133(w) x 121(h) x 147(d) cm
Package Weight
310KG
Minimum Workable Area
177(w) x 150(h) x 210(d) cm
Heating Elements
6 x Top / 5 x Bottom
Heat Up Time
Approx 15mins (100 degrees)
Oil Removal
Sealed oil collection and drainage tap

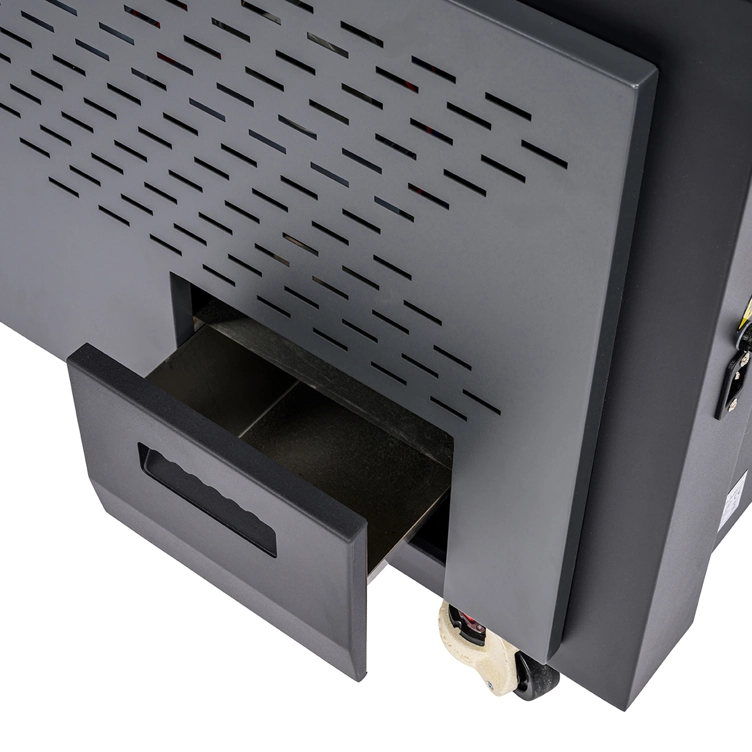

Powder Collection
Powder tray accessible from either side
