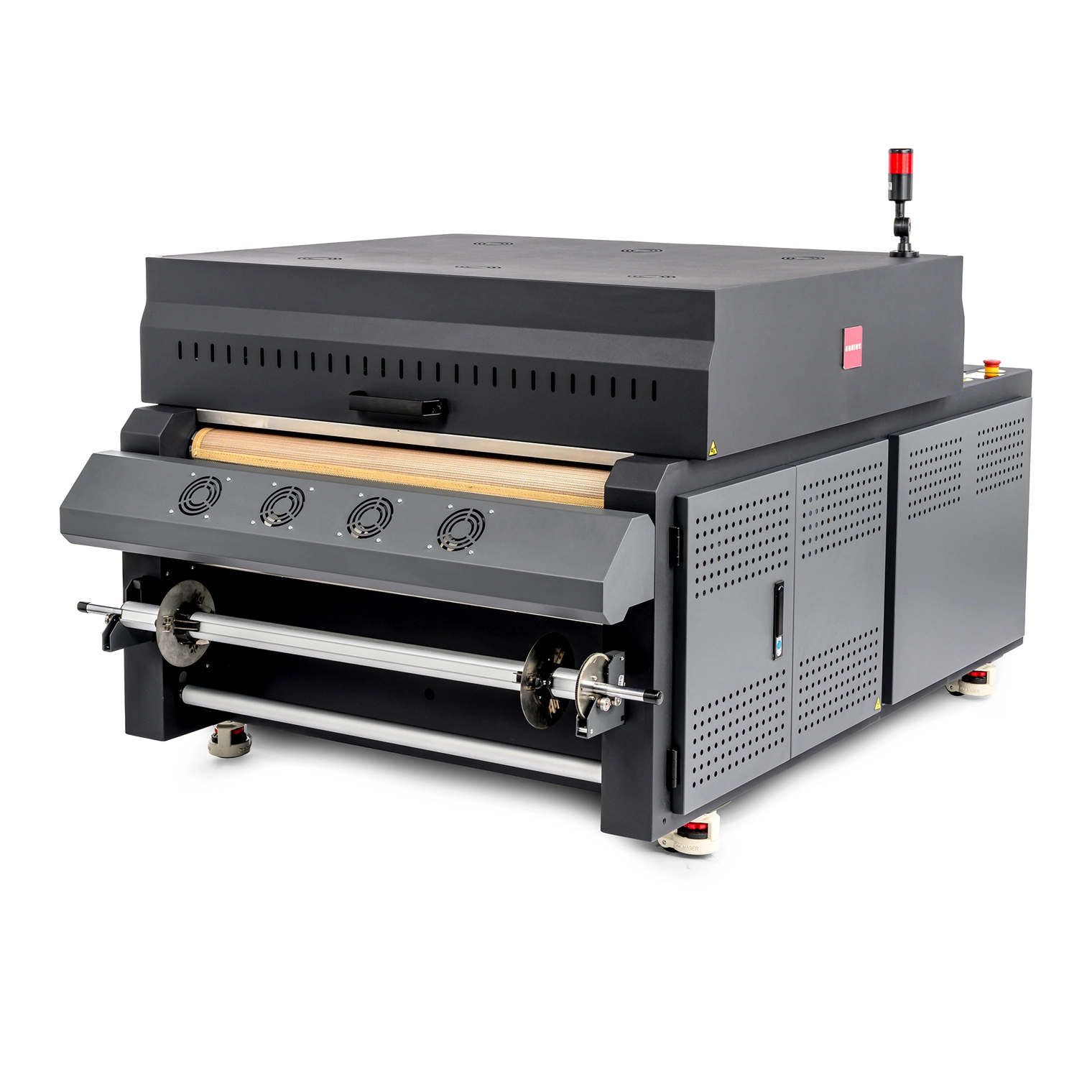

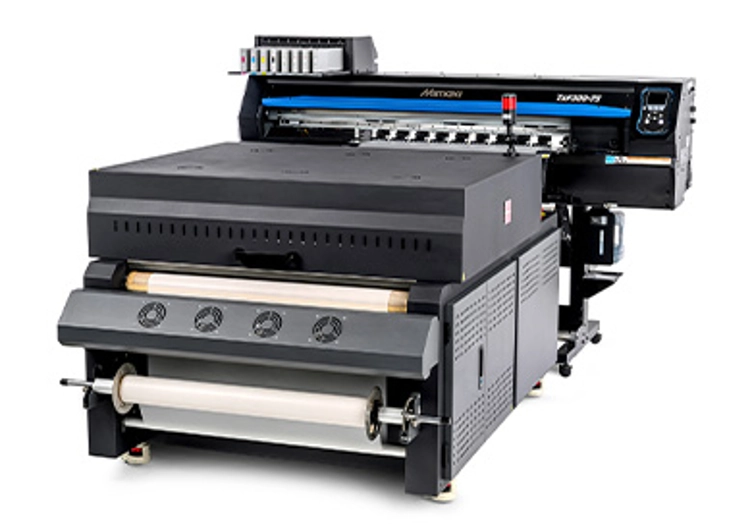

Adkins DTF Inline 900 Pro
The Adkins DTF Inline 900 Pro shaker cure unit comes packed with next generation features to enable efficient high-volume roll to roll DTF production. Featuring innovative automatic powder recirculation and fast curing times with low power consumption for reduced energy costs, the Inline 900 Pro is designed to achieve demanding volume without compromising output quality or reliability.
Key Features:
• 90cm max media width.
• Reliably powder, cure & filter at speeds of 30 l/m per hour.
• Replaceable medical grade filters with automatic on-screen replacement reminders for easy maintenance.

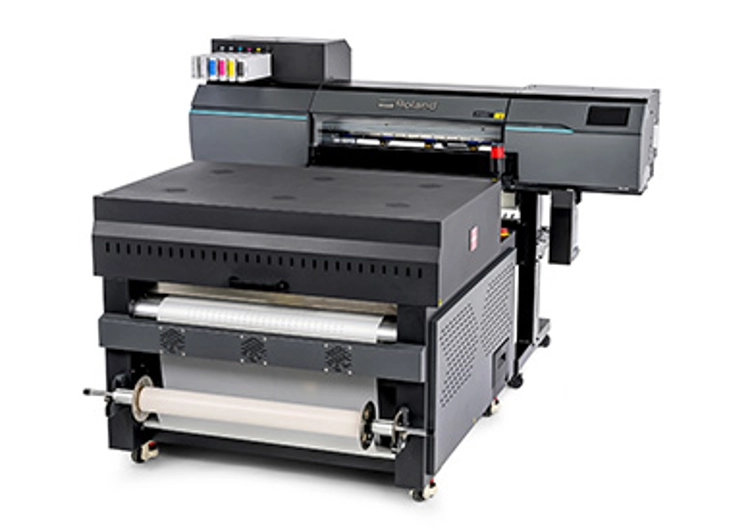

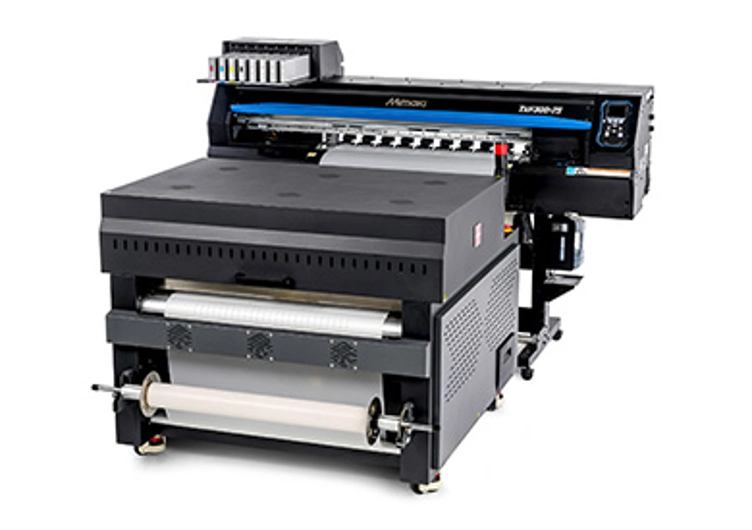

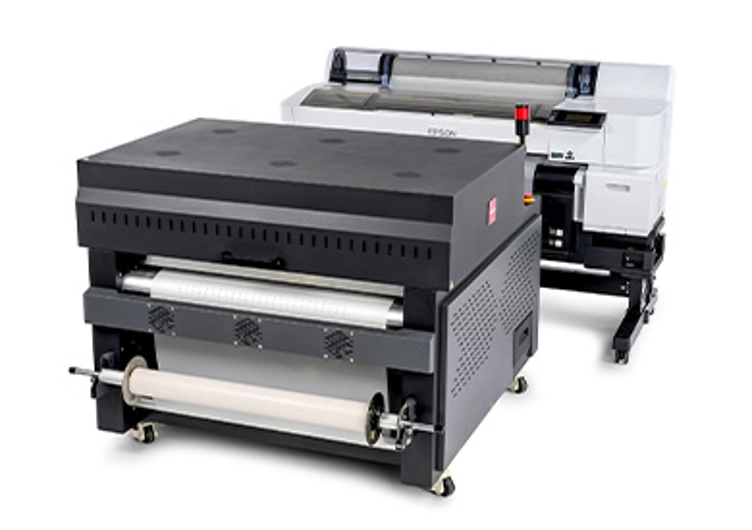

• Compatible with industry leading printer brands.
Sku: XP1359
In Stock
The perfect, innovative industrial roll to roll DTF curing solution
Key Features:
- • Powered by standard domestic plug.
- • Film feed speed detection for easy printer integration.

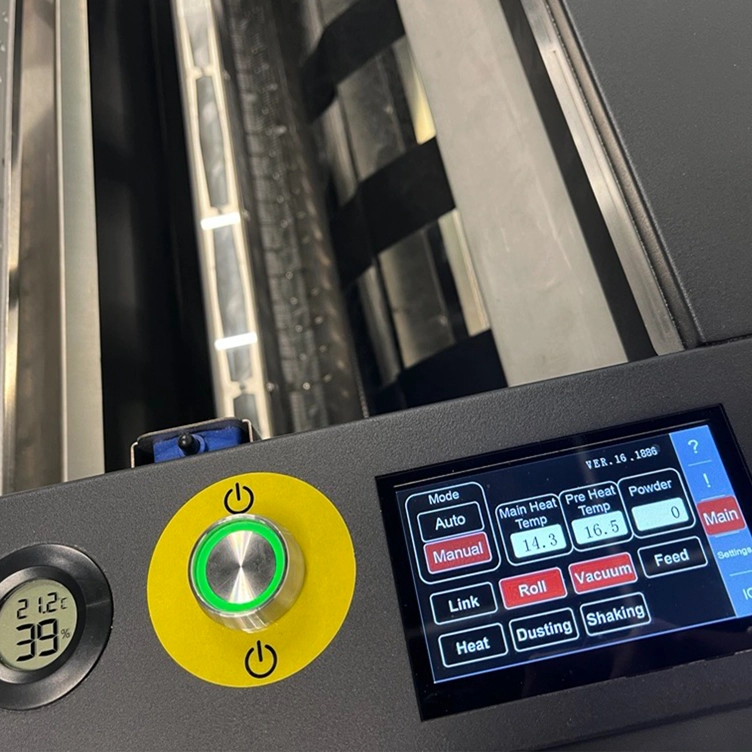

- • Thoughtful humidity and temperature sensor to help manage your DTF production environment.
- • Machine tracking interfaces for simple diagnostics.
- • Low powder warning light for uninterrupted workflow.
- • Digital touch screen with feature explanations for intuitive control.
- • Heavy duty build and reliability synonymous with Adkins.
Download Specification Sheet
Operation Voltage
220-240V AC (UK-13A / EU-16A)
Power Consumption
2.1kw (average)
Circuit Breaker
15A
Max Media Width
90cm maximum
Dimensions
(Machine) 131(w) x 114(h) x 193(d) cm
Weight
(Net) 280KG
Package Size
133(w) x 121(h) x 198(d) cm
Package Weight
390KG
Minimum Workable Area
230(w) x 160(h) x 220(d) cm
Heating Elements
6 x Top / 7 x Bottom
Heat Up Time
Approx 15mins (100 degrees)
Oil Removal
Sealed oil collection and drainage tap
Powder Collection

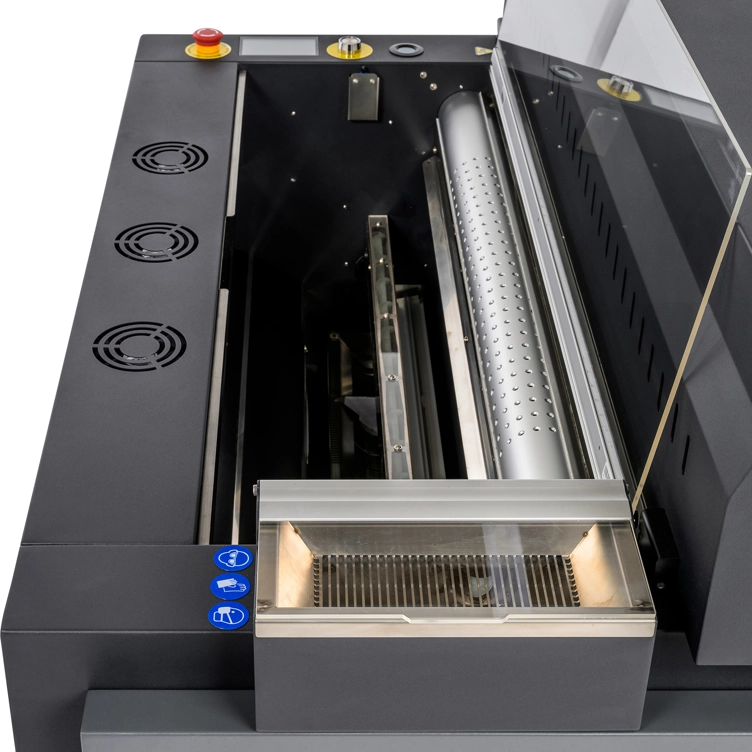

Automatic powder recirculation
